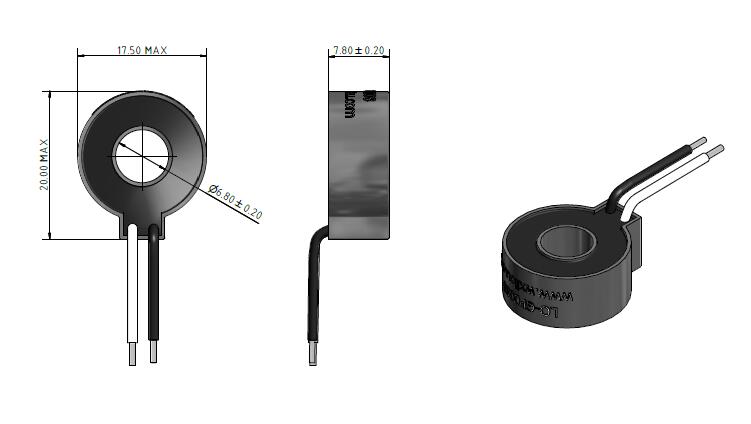

 Description >>
• 50/60 Hz，SinglePhase，AC CurrentSensor
• Dynamic Range from 25 to 30Amps
• Meets IEC 60044-1 class 3
• Very low temperature coefficient
• Meets UL class B (130℃) thermal insulation system
• Meets UL 94V-0
• AC isolation resistance: 4KV for 60s
Application >>
• Digital electricity meter
• Recording
• Power monitorin
• Energy management
• Alternative energy monitoring
 Note: 1.Output voltage is proportional to the derivative(di/dt)of the input current based on the Rogowski Coil principle.
2.All current and voltages assumed to be sinusoidal waveforms at Fr, the constant rated frequency in Hz, measured as RMS value.
3.Accuracy class per IEC60044-1Table 11.
4.Ipri=Rated primary current.
5.Iout=Rated secondary current.
6.Iprimax=Sensed max primary current.
7.Loutmax=Sensed max secondary current.
8.RL=Terminating resistance. Varying terminating resistance increases or decreases output Voltage /Ampers according to following
equation RL=Vout*Nsec/Ipri
| ABSOLUTE MAXIMUM RATINGS |
Operating free air temperature range
|
-40°C to 85°C |
| Storage temperature range |
-40°C to 100°C |
| LEADS INFORMATION |
| 24AWG UL1015 Lead wires |
Leads length:30±3mm |
| Stripped and tinned |
4±1mm |
|
]
